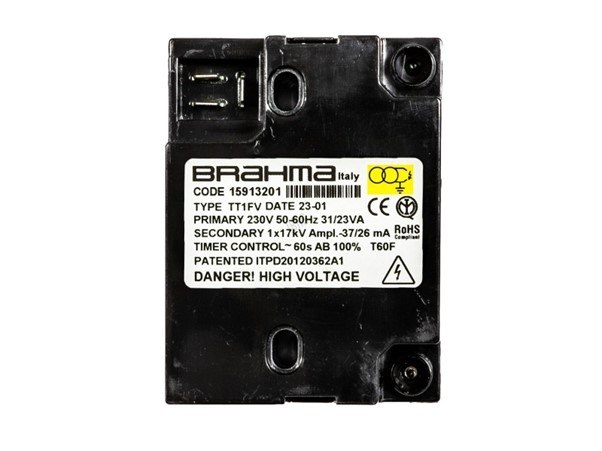

Brahma Tt1F Transformer 230V 4Mm Push On 15913200

Single outlet

The Brahma TT1F ignition transformer (part no.?15913200) is a reliable, high-performance transformer designed for oil and gas burner systems. It delivers consistent 17?kV ignition with low energy consumption, ideal for domestic and commercial applications.

Featuring a 230?V primary input and a 4?mm push-on high-voltage output terminal, this unit is compact, efficient, and compatible with standard burner control setups. A built-in timer limits ignition energy after 60 seconds, while the integrated EMC filter reduces electrical interference.

Key Features:

• Genuine Brahma part #15913200

• 230?V primary input voltage

• 4?mm push-on terminal for high-voltage output

• Integrated EMC filter for reduced electromagnetic interference

• Built-in shutoff timer: deactivates ignition after ~60 seconds

• Supports 33% duty cycle over 3 minutes or 100% continuous use

• Compact and compatible with standard burner installations

Technical Specifications:

• Input Voltage: 220–240?V AC, 50/60?Hz

• Output Voltage: 17?kV (single output)

• Output Terminal: 4?mm push-on

• Timer: Automatic shut-off after ~60?s

• EMC Filter: Built-in

• Duty Cycle: 33% in 3?min or 100% continuous

• Protection: Short-circuit safeguard

• Mounting: Standard footprint for easy retrofit

This genuine Brahma TT1F transformer offers reliable ignition performance, safe operation, and long service life—ideal for replacing or upgrading burner control components.
