Camray 3 Top Baffle 70/90 HE14022C

LAST ONE EX SAMPLE BOULTER

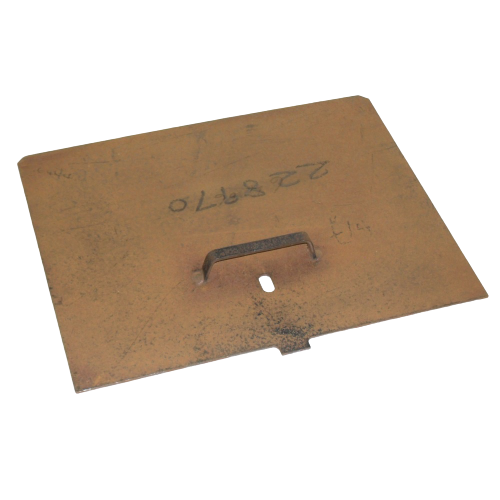

The Camray 3 top boiler baffle (part code HE14022C) is designed for the Boulter Camray 3 70/90 oil boiler range. Fitted at the top of the combustion chamber, the baffle helps to direct flue gases, improve heat transfer, and protect the chamber lining.

Replacing worn or corroded baffles ensures efficient combustion, reduced emissions, and extended boiler service life.

Technical details:

• Manufacturer: Boulter / Worcester Bosch

• Part code: HE14022C

• Position: Top baffle (combustion chamber)

• Boiler range: Camray 3 70/90

• Function: Guides flue gases, optimises efficiency, protects chamber

• Material: High-temperature resistant steel

Compatible with:

• Boulter Camray 3 70/90 oil boilers

• Direct replacement for top baffle HE14022C

Choose this genuine Boulter spare part from Heating-Parts.co.uk for safe boiler operation, correct fit, and long-term reliability.
