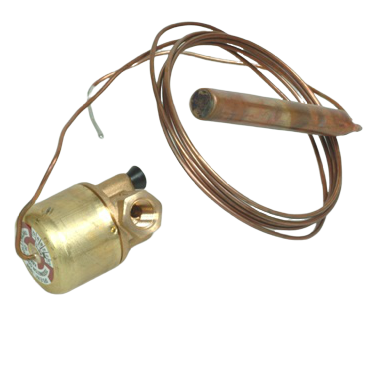

Teddington Kbb Fire Valve C90 C90 X 2.0 Mtr Cap 1/4 Bsp

Teddington KBB Fire Valve C90 C90 x 2.0 Mtr Cap 1/4 BSP Manual on/off

Teddington KBB Fire Valve C90 – 2.0m Capillary | ¼” BSP | High-Safety Oil Shut-Off Valve
Trusted Protection for Oil Heating Systems

Product Summary:

The Teddington KBB Fire Valve C90 with a 2.0 metre capillary and ¼” BSP thread is a high-performance mechanical fire safety shut-off valve designed for oil-fired appliances. This valve is triggered at 90°C and automatically shuts off the oil supply to prevent fuel from feeding a fire, making it an essential safety component for domestic and commercial oil heating systems.

Key Features:

• Automatic oil shut-off at 90°C in the event of fire

• 2.0m capillary length for versatile installation options

• ¼” BSP male thread – standard sizing for easy compatibility

• Fully mechanical operation – no power supply required

• Manufactured by Teddington – a trusted name in heating safety

• Suitable for gravity-fed and pumped oil systems

• WRAS approved for assured safety and performance

• Simple to install and reset

Compatible Boiler & Burner Models:

The Teddington KBB C90 fire valve is universally compatible with a wide range of oil-fired boilers, burners, and cookers, including but not limited to:

• Grant

• Firebird

• Warmflow

• Worcester Bosch (oil models)

• Riello burners

• and other systems using ¼” BSP oil supply lines

Always check installation guidelines or consult a qualified engineer to confirm suitability.

When to Replace:

• During installation of a new oil boiler or burner

• When the existing fire valve has tripped and cannot be reset

• If the capillary is damaged, kinked, or corroded

• As part of scheduled maintenance to ensure ongoing safety compliance

Technical Specifications:

• Part: Teddington KBB Fire Valve

• Model: C90

• Activation Temp: 90°C

• Capillary Length: 2.0 metres

• Connection Size: ¼” BSP (male)

• Type: Mechanical shut-off

• Approval: WRAS, CE marked

• Max Pressure: 1.5 bar (typical system use)
