Fire Valves, Hand Wheels, Cable & Links

Teddington Kbb Fire Valve C90 X 6.0 Mtr Cap 1/4 Bsp

Code:230241

SKU:6090KBB

£52.63 inc. VAT

Quantity
You must specify a quantity of at least 1
  • Out of stock - available in 5-7 days

Overview

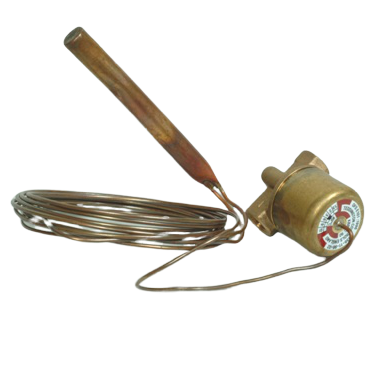

Teddington Kbb Fire Valve C90 X 6.0 Mtr Cap 1/4 Bsp

Teddington KBB Fire Valve C90 – 6.0 Metre Capillary | ¼” BSP Connection
High-Temperature Oil Safety Shut-Off Valve for External Boiler & Cooker Installations

Product Summary:

The Teddington KBB Fire Valve C90 with 6.0m Capillary is a mechanical, heat-activated safety valve designed to cut off the fuel supply to oil-fired heating appliances in the event of excessive heat or fire. Triggering at 90°C, this model is ideal for external installations, including outdoor boiler houses and oil storage areas. Manufactured to high UK safety standards by Teddington Controls, it ensures protection and peace of mind for installers and homeowners alike.

Key Features:

  • Automatic shut-off at 90°C to prevent fire risks in oil heating systems

  • Long 6-metre copper capillary for flexible external fitting

  • ¼” BSP male connection for compatibility with standard oil lines

  • No power required – operates entirely mechanically

  • Wall-mounting bracket included for easy, secure installation

  • Fully compliant with OFTEC regulations and BS EN ISO standards

  • Made in the UK by Teddington – a trusted name in heating safety

Compatible With:

This valve is widely compatible with oil heating appliances including:

  • External oil-fired boilers (e.g., Grant, Firebird, Warmflow, Worcester Bosch)

  • Outdoor oil-fired cookers including AGA and Rayburn units

  • Riello, Ecoflam, Bentone, and other standard oil burners

  • Systems requiring a 90°C activation temperature in open-air conditions

When to Replace:

  • If an existing valve has fired or become defective

  • During routine OFTEC servicing or safety checks

  • When relocating oil equipment outdoors

  • As part of any new installation to comply with fire safety requirements

Technical Specifications:

  • Model: Teddington KBB C90

  • Activation Temp: 90°C

  • Capillary Length: 6.0 metres (copper)

  • Connection Size: ¼” BSP (male thread)

  • Operation Type: Mechanical (non-electric)

  • Max Pressure: 1.5 bar

  • Approvals: CE marked, WRAS approved, OFTEC compliant
