Rayburn T/ Seal 13Mm X 2Mtr No4 Jthr997624 R4716 R5627

Rayburn Royal Cooker Spares

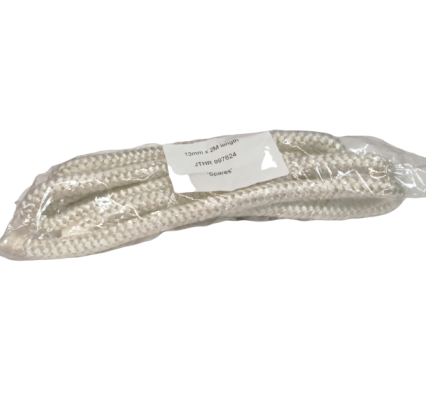

Rayburn T/Seal 13mm x 2m – No.4 (Part No: R5627 / JTHR997624 / R4716)
High-Temperature Door Seal for Rayburn Cooker Models – Genuine Replacement Part

The Rayburn T/Seal R5627 is a genuine, high-performance thermal seal designed for use around Rayburn cooker doors and hotplate edges. Measuring 13mm wide and 2 metres long, this T-section rope seal provides an airtight barrier to retain heat, improve efficiency, and prevent fumes from escaping during operation. A vital part for ensuring safe and optimal cooker performance, this seal is compatible with various Rayburn models and ideal for routine servicing or restoring worn or damaged seals.

Key Features:

• Genuine Rayburn Part – Direct replacement for part numbers R5627, R4716, and JTHR997624

• 13mm T-Section Profile – Designed to fit securely into the seal groove for a tight and lasting fit

• 2 Metres in Length – Supplied in a convenient pre-cut length suitable for most applications

• High-Temperature Resistant – Durable construction designed to withstand cooker heat

• Improves Efficiency & Safety – Prevents heat loss and stops flue gases from escaping into the kitchen

Compatible With:

• Rayburn No.4 Series Cookers

• Also used in other compatible solid fuel and oil-fired Rayburn models (check manufacturer manual or part numbers for confirmation)

• Part number cross-references:

  • R5627

  • R4716

  • JTHR997624

When to Replace:

• If the existing seal is:

  • Cracked, frayed, or compressed

  • Causing heat loss or smoke leakage

• As part of annual maintenance or cooker refurbishment

• After door or hotplate adjustment work

Tip: A poorly sealed cooker reduces heat output, increases fuel consumption, and can compromise kitchen safety—always inspect the seal for wear during servicing.

Technical Specifications:

• Part Number: R5627

• Seal Type: T-Section rope seal

• Width: 13mm

• Length: 2 metres

• Material: High-temperature fibreglass/ceramic seal material

• Colour: Black (typical for Rayburn seals)

• Application: Cooker door/hotplate sealing for Rayburn models
