Press Fit Gas 45Deg Street Elbow - 22Mm

Press Fit Gas 45Deg Street Elbow - 22Mm

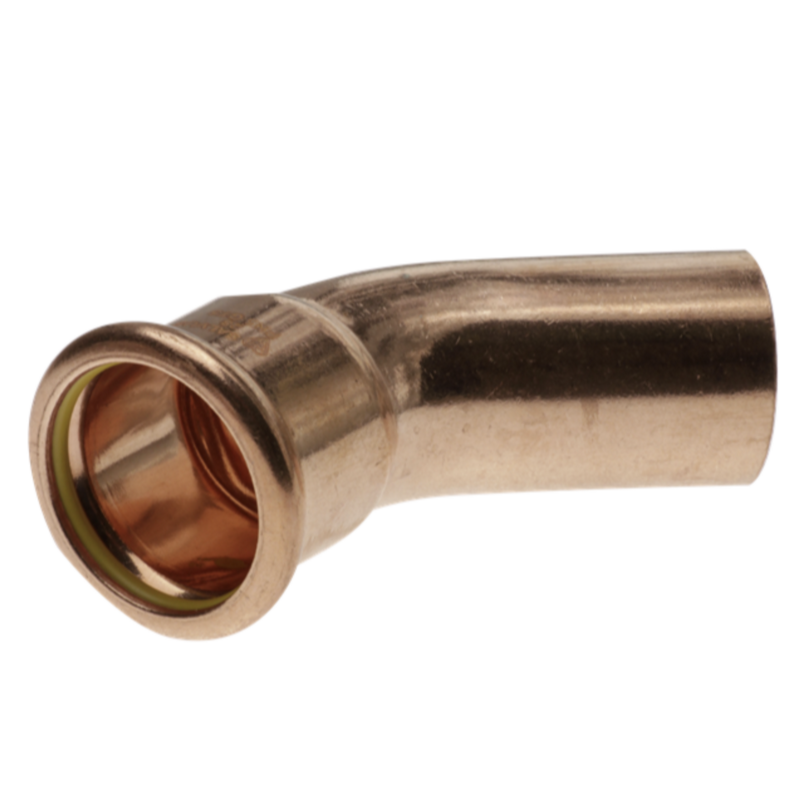

The 22mm Press Fit Gas 45° Street Elbow is a specialized copper fitting used for the directional routing of gas pipework in domestic and commercial installations. The "Street" (or spigot) design features one female press-fit socket and one male spigot end, allowing the fitting to be inserted directly into another press-fit socket. This eliminates the need for a short "bridge" of pipe, saving space and reducing the number of joints in tight configurations.

Engineered specifically for gas safety, this fitting contains a Yellow HNBR O-ring, which is chemically resistant to natural gas and LPG. Using a press-fit system allows for a permanent, flame-free mechanical bond, making it the preferred choice for modern "no-hot-works" sites.

Key Features and Specifications

Size: 22mm (The standard size for main gas carcass runs in most UK homes).

Angle: 45° (Obtuse) – Ideal for creating smooth offsets or 90° turns (when used in pairs) with less resistance than a standard elbow.

Configuration: Street (1 x Female Socket, 1 x Male Spigot end).

Material: High-grade copper manufactured to BS EN 1254-7 standards.

Seal Technology: Features a high-visibility Yellow HNBR O-ring, specifically rated for gas and LPG systems.

Installation: Requires a professional hydraulic press tool with an M-Profile or V-Profile jaw (verify jaw compatibility with the specific fitting brand).

Performance: Provides a high-integrity, vibration-resistant joint.

Common Applications

Gas Carcass Installation: Routing 22mm gas lines through floor joists or wall cavities where soldering is difficult or high-risk.

Boiler Connections: Creating precise pipe offsets when connecting the 22mm gas supply to the boiler inlet.

Retrofit Projects: Ideal for installing new gas lines in occupied properties where the use of a blowlamp is restricted.

[!IMPORTANT] Gas Safety Notice: All gas pipework must be installed and tested by a Gas Safe Registered engineer. Press-fit gas fittings must feature the yellow O-ring to ensure they are correctly specified for gas use rather than water.

Essential Companion Products

Pipework: 22mm Copper Pipe (R250 Half-Hard)

Identification: Yellow Gas Identification Tape

Testing: Gas Leak Detector Spray

Preparation: Professional Copper Pipe Deburrer (Essential for protecting the O-ring during insertion)

Specialist Support and Local Collection

We stock a full inventory of gas-rated press fittings in 15mm, 22mm, and 28mm for immediate trade collection. Our range includes elbows, tees, couplers, and adaptors to ensure you have the right components for a safe and efficient installation.

Visit our trade counter at 61 Fullers Road, E18 2QB for expert advice and to verify tool compatibility for your press-fit system.
