Solvent Weld Waste 32Mm 135Deg Knuckle - Grey

Solvent Weld Waste 32Mm 135Deg Knuckle - Grey

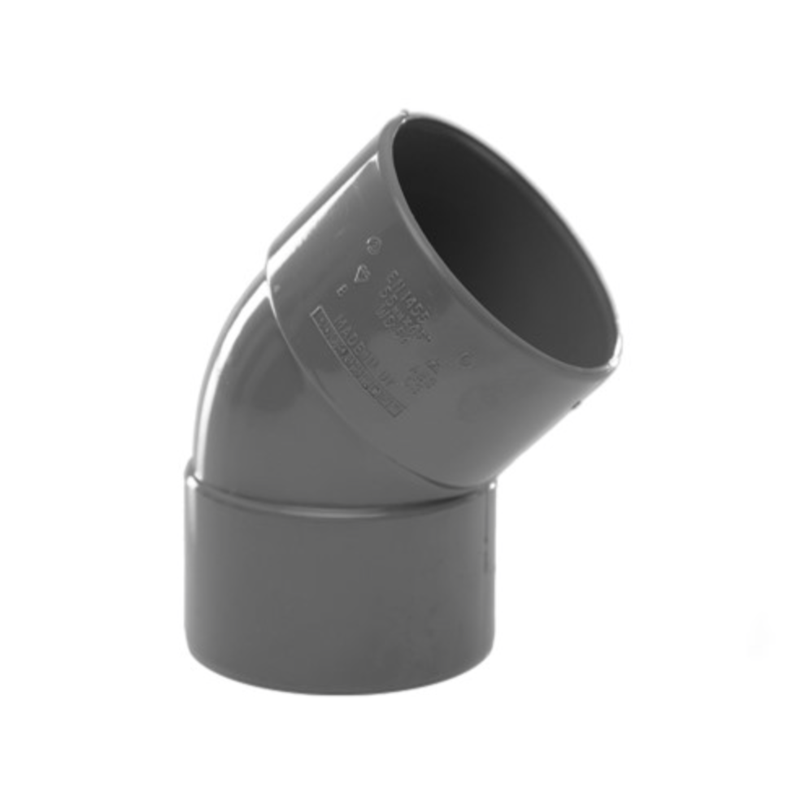

The 32mm Grey Solvent Weld 135° Knuckle (also known as a 45-degree elbow) is a specialized drainage fitting used for making gradual directional changes in a waste system. Unlike a sharp 90-degree bend, the 135° angle promotes superior flow characteristics, significantly reducing the risk of blockages and "sludge" build-up in small-bore waste runs.

As a Solvent Weld fitting, it is designed to be permanently fused to the pipework using solvent cement. The grey finish is the industry standard for external waste runs and high-temperature discharge applications, such as from bathroom basins and bidets.

Key Features and Specifications

Size: 32mm (Standard diameter for bathroom basins, bidets, and condensed water outlets).

Angle: 135° (45-degree offset) for smooth hydraulic transition.

Joint Type: Female Solvent Socket x Female Solvent Socket.

Material: High-impact ABS or PVC-u (Grey), resistant to hot water and household cleaning chemicals.

Jointing Method: Solvent Weld (Creates a permanent, molecularly fused, leak-proof joint).

Finish: Standard Grey (UV-stabilized for both internal and external use).

Common Applications

Basin Waste Routing: Navigating around bathroom pedestals or within vanity units to reach the main discharge stack.

Condensate Drainage: Ideal for the 32mm discharge lines from high-efficiency boilers or air conditioning units.

Offset Maneuvers: Using two 135° knuckles together to create a smooth "S-bend" to bypass structural obstacles like joists or wall studs.

Bidet Installation: Specifically sized for the smaller waste outlets common on bidet fixtures.

Essential Companion Products

Installation: Professional Solvent Cement (with Brush)

Pipework: 32mm x 3m Solvent Weld Waste Pipe - Grey

Preparation: PVC-u Pipe Cleaner / Degreaser

Support: 32mm Waste Pipe Clips - Grey

Specialist Support and Local Collection

Dealing with a slow-draining basin? Replacing sharp 90° bends with 135° knuckles is a common trade trick to improve flow and prevent future blockages. We stock a full range of 32mm, 40mm, and 50mm solvent weld fittings in Grey, White, and Black.

Visit our trade counter at 61 Fullers Road, E18 2QB for immediate collection and expert advice on choosing the right waste configuration for your project.
