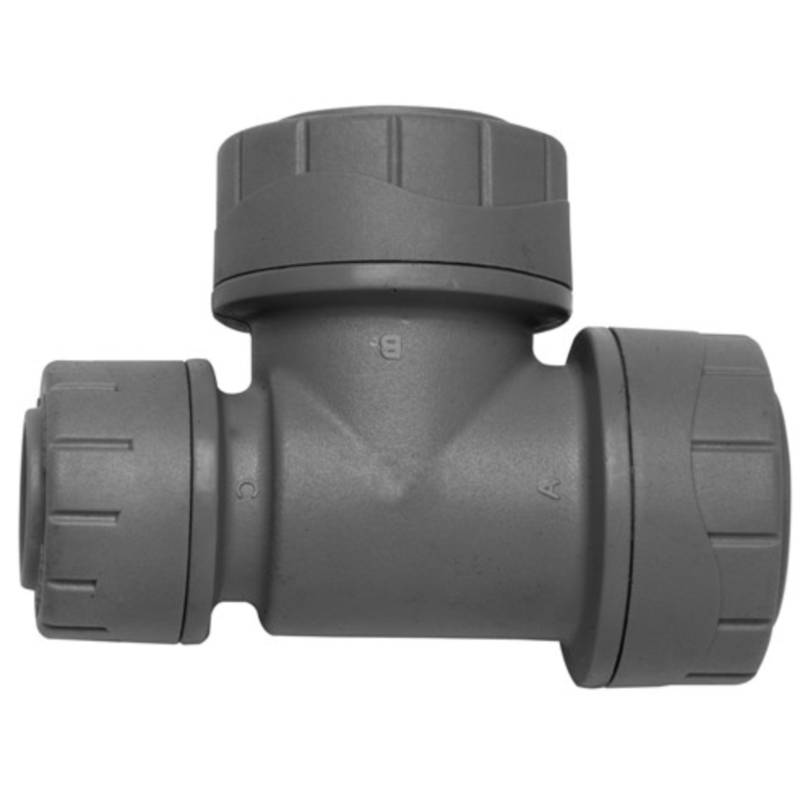

Polyplumb Pushfit End Reduced Tee - 22Mmx15Mmx22Mm

Polyplumb Pushfit End Reduced Tee - 22Mmx15Mmx22Mm

The Polyplumb Enhanced Pushfit End Reduced Tee (22mm x 15mm x 22mm) is a specialized, WRAS Approved component used to create a branch connection where the main straight-run pipe is reduced for a short section. Specifically, this fitting connects a 22mm pipe on the main run, reduces to a 15mm side branch, and then returns to a 22mm pipe on the exit of the straight run. This configuration is often used to drop a smaller supply line directly off a main circuit while maintaining the larger bore on the primary line. All connections are made using the secure, flame-free push-fit technology.

Key Features and Installation Advantages
WRAS Approved: Certified as WRAS Approved, ensuring full compliance with the UK Water Regulations for materials and safety in all domestic plumbing installations.

Size Configuration: End Reduced Tee – Connects 22mm pipe on the main flow entry, 22mm pipe on the main flow exit, and features a smaller 15mm side branch at a right angle.

Function: Ideal for cleanly tapping off a standard 15mm feed line from a high-volume 22mm main circuit, such as supplying a group of radiators or a single fixture.

Enhanced Technology: Features the advanced internal collet and grab ring mechanism that secures all three pipes instantly upon insertion, guaranteeing a reliable seal across both sizes.

Demountable: The fitting can be safely disconnected and reused using a Polyplumb release tool, offering excellent flexibility for system modifications and maintenance.

Flame-Free: Installation requires no heat, providing a quick, safe, and clean method for branching off a main circuit.

The Installer's Advantage
This specific End Reduced Tee simplifies the process of branching off a main circuit. It provides a reliable, single-fitting solution for a reduction and connection that would otherwise require two separate fittings (a 22mm tee and a 22mm x 15mm reducer), saving time and reducing the number of potential leak points.

Essential Companion Products
This Tee requires specific components for guaranteed performance:

Pipe (Main Run): Connects to the two 22mm ports: Polyplumb Coiled Polypipe - 22mm x 25m.

Pipe (Branch): Connects to the 15mm port: Polyplumb Coiled Polypipe - 15mm x 100m.

Stiffeners (22mm): Mandatory for the two 22mm ports: Polyplumb Pipe Stiffeners Black - 22mm (Pack of 50).

Stiffeners (15mm): Mandatory for the 15mm port: Polyplumb Pipe Stiffeners Black - 15mm (Pack Of 50).

Specialist Support and Local Collection
Need reliable stock of reduction fittings or technical advice on system design? Our trade counter is fully stocked and ready.

Visit our trade counter and Bathroom Showroom at 61 Fullers Road, E18 2QB for expert advice and quick access to parts.
